Upgrade All-Aluminum Tube-Fin Intercooler for 2011–2016 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax | SPELAB

 ---tab Description---

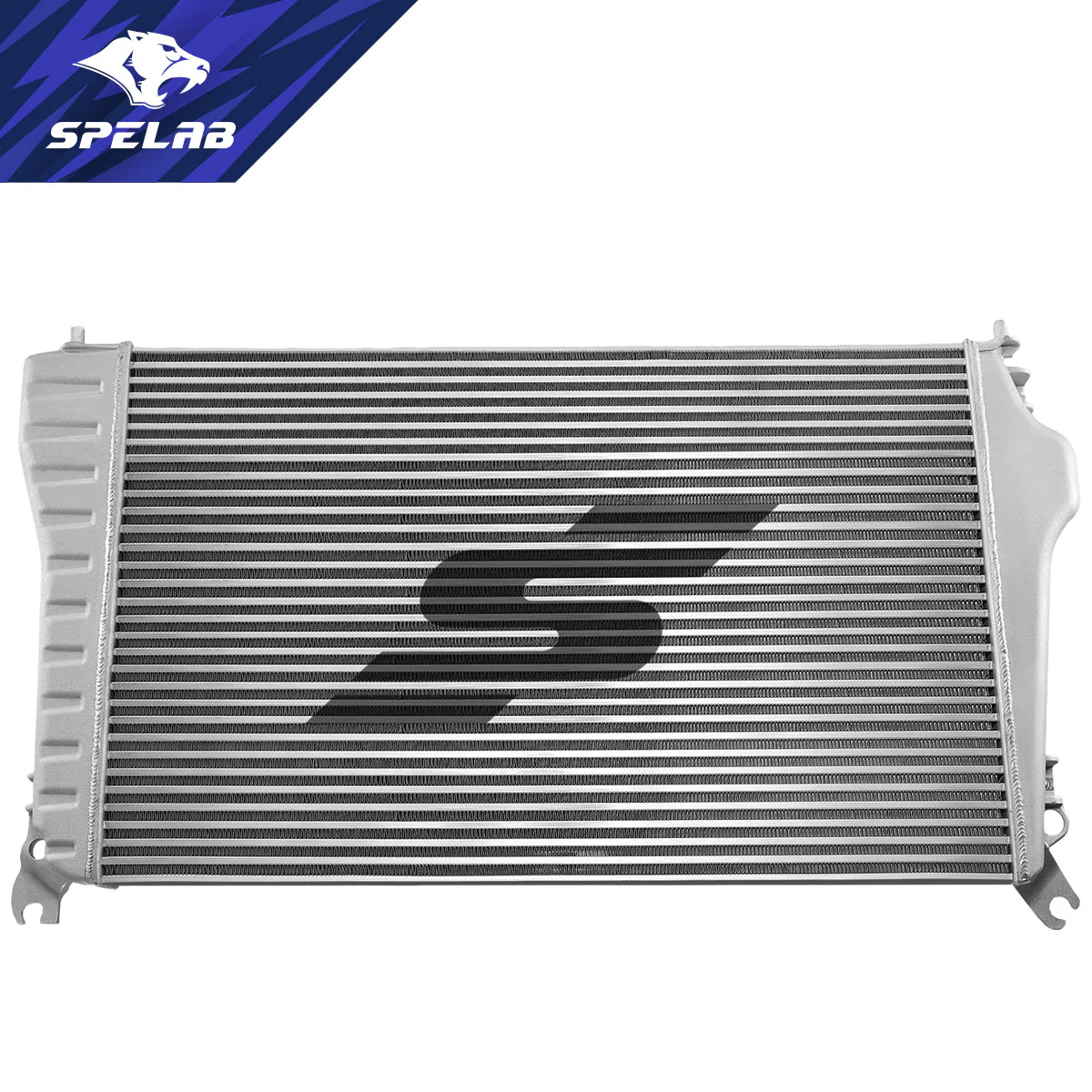

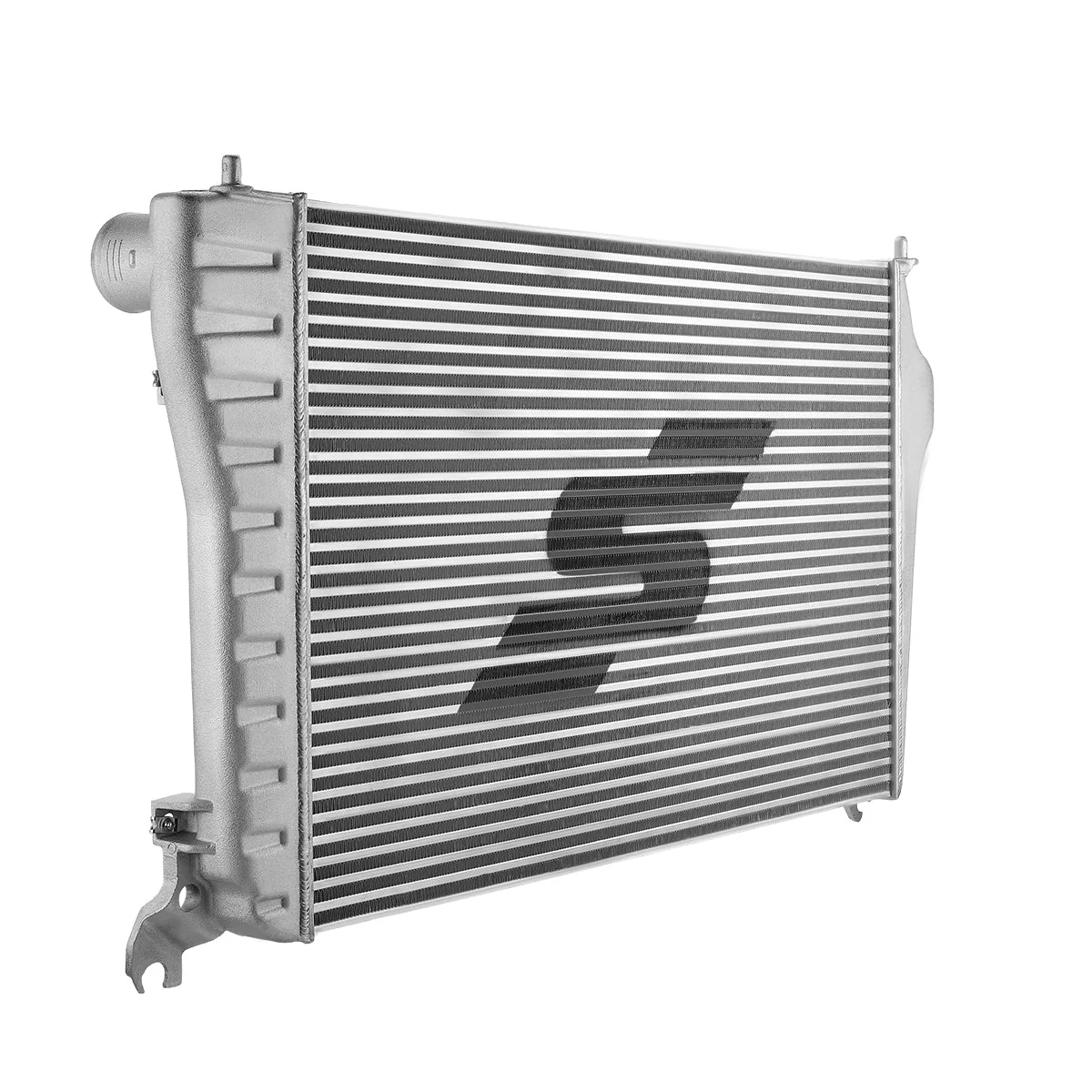

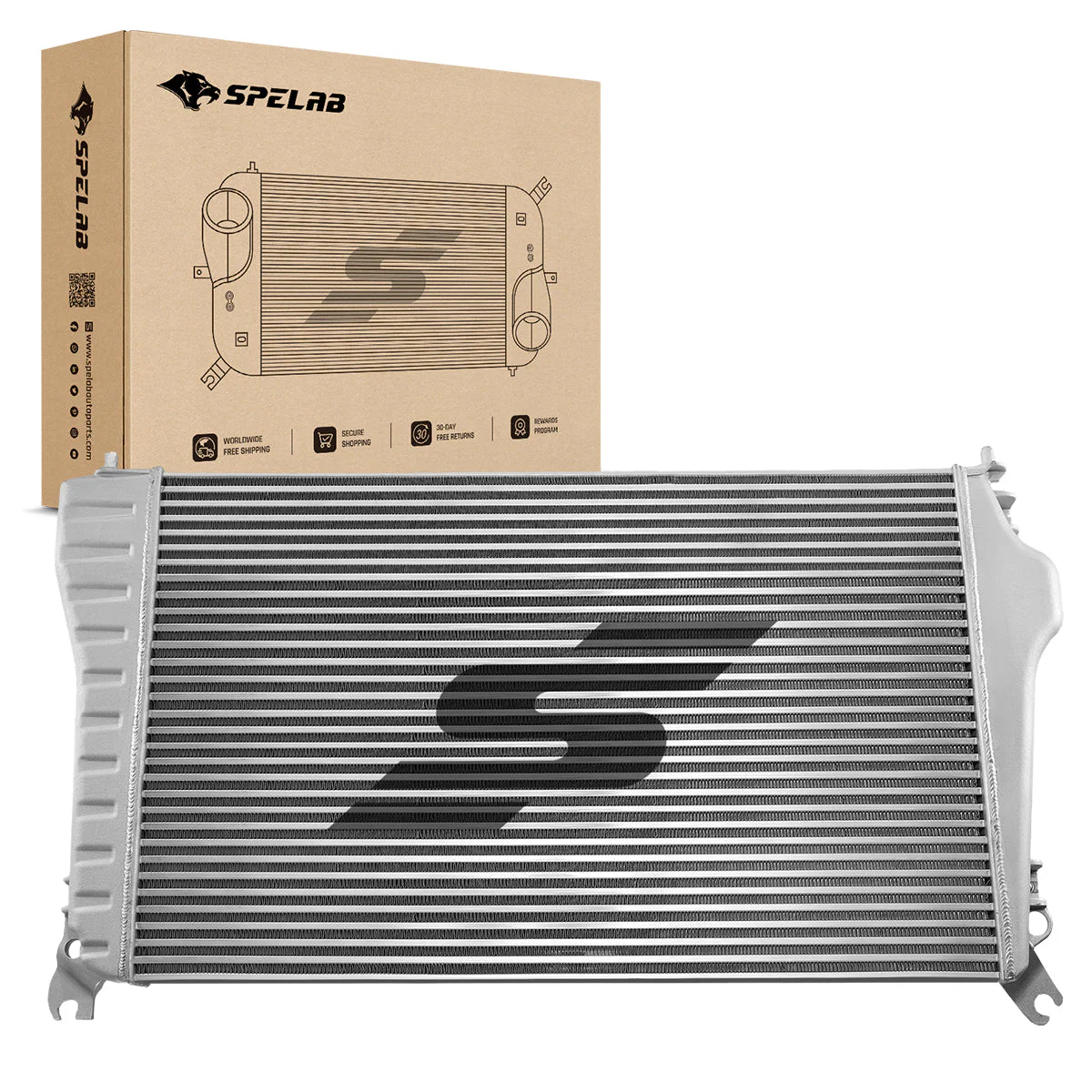

LML Duramax Tube-Fin Intercooler Overview

Upgrade the weak link in your LML's charge air system. The SPELAB All-Aluminum Intercooler is a heavy-duty reliability solution specifically engineered for the 2011-2016 Chevrolet/GMC 2500HD/3500HD.

The LML Duramax is a towing powerhouse, but the factory intercooler utilizes crimped plastic end tanks that are prone to cracking under heavy loads or high boost. SPELAB replaces this failure point with 100% aluminum end tanks, ensuring your truck stays on the road and out of the shop.

Featuring a robust 64mm thick Tube-Fin core and weighing in at over 36 lbs, this unit provides a significant increase in cooling capacity over stock. Unlike overly dense competition cores that can restrict airflow to the radiator, our engineered Tube-Fin design maintains the "Flow-Through" capability essential for the LML's cooling stack, keeping your engine coolant temps safe while delivering denser, cooler intake air.

All-Aluminum Intercooler Fitment

• 2011 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax
• 2012 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax
• 2013 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax
• 2014 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax
• 2015 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax
• 2016 LML Chevrolet/GMC Sierra 2500HD 3500HD 6.6L Duramax

Tube-Fin Intercooler Key Features

• Perfect Balance for Towing (Radiator Safe):
  LML trucks are often used for heavy towing. While you need cooler intake air, you cannot afford to block airflow to your radiator. Our 64mm Tube-Fin core increases cooling volume significantly but uses a fin design that allows ample ambient air to pass through to the main cooling system. It prevents the engine overheating issues often caused by "wall-like" bar-and-plate cores.

• Eliminate Plastic Failures:
  The stock LML intercooler is a temporary part living on borrowed time. Plastic end tanks crimped to the core will eventually leak. Our unit is solid aluminum, welded, and pressure-tested. It is a permanent fix for boost leaks.

• Heavy-Duty Thermal Mass:
  Weighing 36.3 lbs, this is not a flimsy replacement. The substantial aluminum mass helps absorb heat spikes during hill climbs, while the Tube-Fin structure sheds that heat rapidly on the descent, ensuring your EGTs stay consistent.

• Direct Fit, No Modifications:
  Engineered to fit the 2011-2016 front end perfectly. It works with factory piping or aftermarket charge pipes, making installation straightforward for any DIY mechanic.

Product Specifications

64mm Core and 36.3 lb Aluminum Build

Core Thickness (Tube-Fin)	64 mm
Material	Full aluminum alloy
Weight	16.45 kg (36.3 lbs)
Package Dimensions	122.6 × 17.8 × 75.5 cm (48.3" × 7.0" × 29.7")
Installation	Direct Bolt-On

---tab FAQ---

LML Duramax Tube-Fin Intercooler FAQs

Q: Will this 64mm core block airflow to my radiator?
A: No. We specifically utilize a Tube-Fin design for this 64mm core to ensure high air permeability. This allows the radiator behind it to function efficiently, even when towing heavy loads in summer heat.

Q: Is this a performance upgrade or just a replacement?
A: It is both. It replaces the weak plastic tanks for reliability, and the thicker 64mm core offers better cooling performance than the thinner stock unit.

Q: Should I choose this or the Bar-and-Plate version?
A: For 90% of LML owners (Daily driving, Towing RVs/Boats, Street Tunes), this Tube-Fin model is the better choice because it protects your engine water temps. Choose Bar-and-Plate only for dedicated competition/racing trucks where heat soak capacity is the sole priority.
